In the complex landscape of software architecture, clarity is often the difference between a robust system and a fragile one. While class diagrams provide the blueprint for structure, they often fail to capture the dynamic reality of data at a specific moment. This is where the UML Object Diagram becomes indispensable. It offers a concrete snapshot of instances, links, and values, allowing architects and developers to visualize the actual state of a system before code is written or during runtime debugging.

This guide delves deep into the mechanics, applications, and strategic value of Object Diagrams. By examining how these diagrams function alongside class diagrams, we can establish a clearer path for system design and documentation.

What is an Object Diagram? 🧩

An Object Diagram is a static structure diagram that represents a specific snapshot of instances at a particular point in time. Unlike a Class Diagram, which defines the potential structure (the type of a car), an Object Diagram depicts the actual instances (this specific car with VIN number 12345).

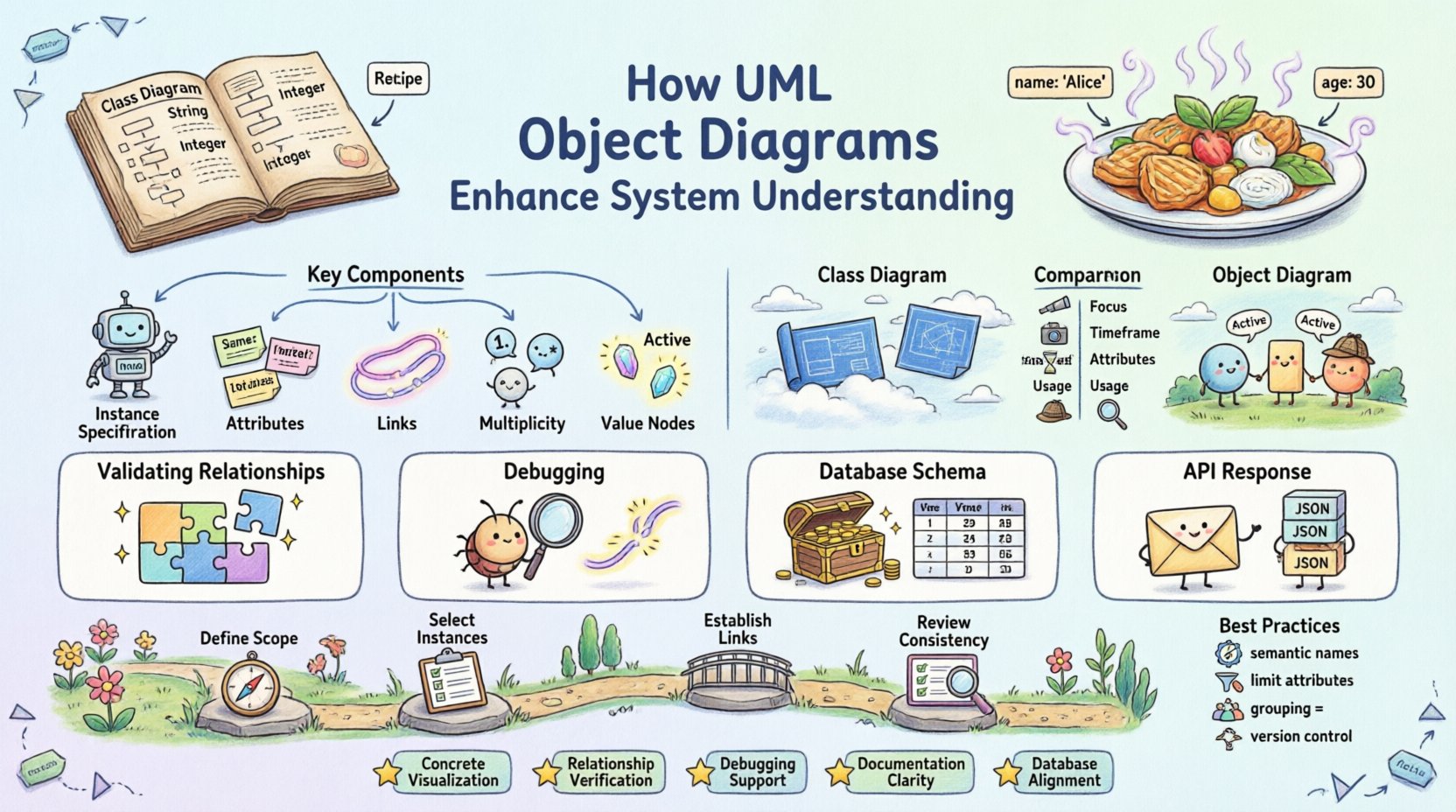

Think of a Class Diagram as a recipe and an Object Diagram as the finished dish. The recipe tells you what ingredients and steps are needed, but the dish shows you the actual result. In UML modeling, this distinction is critical for understanding data integrity and relationships.

Key Components 🛠️

To understand the diagram, one must recognize the fundamental building blocks:

• Instance Specification: A node representing a specific object. It is usually displayed as a rectangle with the instance name underlined, followed by the class name.
• Attributes: Values assigned to specific properties of the instance. In a class diagram, this is a type (e.g., Integer); in an object diagram, it is a concrete value (e.g., 5).
• Links: The actual connections between instances. These correspond to associations in the class diagram but represent real paths between data points.
• Multiplicity: Constraints that limit the number of links an instance can have (e.g., 1..* means one or more).
• Value Nodes: Constants or literals that do not belong to a specific class but are used within the system (e.g., a status code like “Active”).

Class Diagram vs. Object Diagram: The Core Difference 🔄

Confusion often arises between Class and Object diagrams. Both are structural, but their purpose differs significantly. The table below clarifies the distinctions to ensure accurate application.

Feature	Class Diagram	Object Diagram
Focus	Abstraction and Type Definition	Concrete Instances and State
Timeframe	Static (Always True)	Dynamic (Snapshot in Time)
Attributes	Data Types (e.g., String, Int)	Actual Values (e.g., “John”, 25)
Usage	Design and Blueprinting	Validation, Debugging, Documentation
Complexity	High (Defines all possibilities)	Variable (Shows specific scenario)

Understanding this table is essential for avoiding redundancy. A system design should not rely solely on object diagrams for long-term architecture, as they change frequently. However, they are vital for verifying that the class structure supports real-world scenarios.

Strategic Use Cases for Object Diagrams 🎯

While class diagrams are the backbone of design, object diagrams serve as the bridge between abstract theory and concrete reality. Here are specific scenarios where their application adds significant value.

1. Validating Data Relationships 🔗

When designing complex databases, it is easy to miss edge cases in relationships. An object diagram allows you to visualize how a specific record connects to others.

• Example: Visualizing a user account with multiple login sessions.
• Benefit: You can see if a single user instance correctly links to multiple session instances without violating multiplicity constraints.
• Outcome: Prevention of data integrity errors during implementation.

2. Debugging Runtime Issues 🐛

When a system fails, the error often lies in the state of the objects rather than the logic of the classes. Object diagrams can be used to document the state at the time of failure.

• Scenario: An order object is in a “Pending” state but has no linked payment objects.
• Analysis: The diagram highlights the broken link in the chain.
• Resolution: Developers can trace the exact path where the association should have been created.

3. Database Schema Verification 🗄️

Before generating SQL scripts, it is prudent to verify the foreign key relationships. Object diagrams model the data entities as they exist, which maps closely to database tables and rows.

• Mapping: An instance in the diagram corresponds to a row in a table.
• Links: Correspond to foreign key constraints.
• Advantage: Ensures that the schema enforces the intended business rules regarding data coupling.

4. API Response Modeling 📡

Modern APIs return JSON structures. An object diagram can represent a sample response payload, showing nested objects and their relationships.

• Context: A GET request for a user profile.
• Diagram: Shows the User object linked to a Profile object, which is linked to an Address object.
• Value: Clarifies the depth of nesting for frontend developers consuming the API.

Constructing an Effective Object Diagram 🏗️

Creating these diagrams requires discipline. Unlike class diagrams, which are relatively stable, object diagrams must remain focused on the specific instance or scenario they represent. The following steps outline the process of constructing a clear and useful diagram.

Step 1: Define the Scope 🎯

Do not attempt to model the entire system in a single object diagram. This leads to clutter and confusion. Select a specific use case or a critical part of the system.

• Bad Approach: Drawing every object in the application.
• Good Approach: Drawing the objects involved in a specific “Checkout” process.
• Result: A manageable diagram that highlights specific interactions.

Step 2: Select Instances and Assign Values 📝

Choose representative instances. Use meaningful names to indicate their role, not just generic IDs.

• Instance Name: Use a prefix or identifier (e.g., user001).
• Attribute Values: Fill in realistic data (e.g., name: “Alice”, age: 30).
• Constraint: Ensure values match the data types defined in the class diagram.

Step 3: Establish Links and Multiplicity 🔗

Draw the lines connecting the instances. These lines represent associations.

• Direction: Indicate the direction of navigation if applicable.
• Labels: Use role names (e.g., “owns”, “manages”) to clarify the relationship.
• Multiplicity: Verify that the number of links matches the constraints defined in the class diagram.

Step 4: Review for Consistency ✅

Compare the object diagram against the class diagram. Every link in the object diagram must be a valid association in the class diagram. Every attribute value must be a valid type.

• Check: Are there any orphaned links?
• Check: Are all required associations present?
• Check: Do the attribute values align with the domain logic?

Best Practices for Clarity and Maintainability 📚

To ensure these diagrams remain useful assets rather than burdensome documentation, adhere to the following guidelines.

• Keep Names Semantic: Avoid generic names like “obj1” or “obj2”. Use names that describe the role (e.g., billingAccount, shippingAddress).
• Limit Attribute Visibility: Do not clutter the diagram with every single attribute. Show only the ones relevant to the specific scenario being modeled.
• Use Grouping: If multiple instances of the same class exist (e.g., 5 different products), consider using a bracketed list or a single representative node with a note, rather than drawing 5 identical rectangles.
• Link to Class Diagram: Always reference the parent class diagram. The object diagram is meaningless without the structural context.
• Version Control: Treat object diagrams as code. They change as the system evolves. Store them in a version-controlled repository alongside the codebase.

Common Pitfalls to Avoid ⚠️

Even experienced modelers can fall into traps that reduce the utility of object diagrams. Awareness of these common mistakes helps maintain high standards.

1. Over-Modeling Behavior

Object diagrams are static. They do not show processes, flows, or actions. Do not try to depict state transitions (like “Moving from A to B”) within the diagram itself. Use State Machine Diagrams for that purpose. Confusing static structure with dynamic behavior leads to misinterpretation.

2. Ignoring Null Values

In many systems, relationships are optional. An object diagram should reflect whether a link is required or optional. If a relationship is optional, the absence of a link in the diagram is a valid state. Failing to document this can lead to assumptions that a link must always exist.

3. Inconsistent Naming Conventions

Using different naming styles for instances (e.g., some in camelCase, some in snake_case) creates cognitive friction. Stick to a standard convention that matches the underlying programming language or domain language.

4. Confusing Aggregation and Composition

While class diagrams distinguish between these strong and weak relationships, object diagrams often blur them. It is crucial to maintain this distinction. Composition implies that the lifecycle of the child object depends on the parent. In the object diagram, this should be clear visually, perhaps through specific link styling or notes, ensuring the data integrity rules are understood.

Integration with the Broader Design Process 🚀

Object diagrams do not exist in isolation. They are part of a larger ecosystem of modeling artifacts. How do they fit into the development lifecycle?

1. Requirements Analysis

During the early stages, object diagrams help stakeholders understand data structures. Business analysts can look at a diagram showing a “Customer” linked to “Orders” and immediately grasp the scope of the project without needing technical knowledge of inheritance or polymorphism.

2. Implementation Phase

Developers use these diagrams to write data access logic. When creating a repository or a DAO (Data Access Object), the object diagram serves as a map for writing queries. It confirms which tables need to be joined and which columns define the relationships.

3. Testing Phase

Testers can use object diagrams to design test data. Instead of creating random data, they can create instances that match the structure shown in the diagram, ensuring that test cases cover the specific relationships defined by the architecture.

4. Documentation and Handover

When new developers join a team, class diagrams explain the code structure, but object diagrams explain how the data actually looks in the database or the application memory. They are invaluable for onboarding and knowledge transfer.

Advanced Considerations: Composite Structures 🧱

For complex systems, simple object diagrams may not suffice. Advanced modeling techniques can be applied to handle composite structures.

• Cloning: If multiple instances share the same underlying data, consider how to represent this. In some models, a “clone” relationship might be noted.
• Subsystems: Large object diagrams can be broken down into subsystems or packages. Each package represents a logical grouping of objects (e.g., “Payment Objects”, “Inventory Objects”).
• Time-Based Variations: To show evolution, create a series of object diagrams labeled “State 1”, “State 2”, etc. This provides a narrative of how data changes over time without using behavioral diagrams.

The Role of Object Diagrams in Microservices 🏗️

In modern distributed architectures, object diagrams take on a new significance. They help visualize the data contracts between services.

• Service A: Creates a User object.
• Service B: Reads a User object.
• Diagram: Shows the payload structure passed between them.
• Benefit: Prevents “Schema Drift” where Service A and Service B interpret the data differently.

Final Thoughts on Structural Clarity 🧭

The journey from abstract requirements to concrete code is paved with structural decisions. UML Object Diagrams provide a vital checkpoint in this journey. They force the modeler to confront the reality of data instances rather than just the potential of data types.

By focusing on specific snapshots, valid links, and concrete values, these diagrams reduce ambiguity. They serve as a contract between the design and the implementation teams. When used correctly, they prevent the common pitfalls of mismatched expectations and data inconsistencies.

Remember that a diagram is only as good as the insight it provides. Avoid creating diagrams for the sake of creation. Every rectangle and line should serve a purpose in clarifying the system’s structure. When you see a complex relationship that is hard to explain in words, draw it. When you need to verify that a data constraint holds true in a specific scenario, draw it.

Ultimately, the goal is system understanding. Whether for debugging, documentation, or design validation, the UML Object Diagram remains a powerful tool in the architect’s toolkit. It grounds the floating abstractions of software design into the tangible reality of data and connections.

Summary of Value 💡

To recap, the strategic application of object diagrams offers several distinct advantages:

• Concrete Visualization: Transforms abstract types into tangible instances.
• Relationship Verification: Ensures links and associations match business rules.
• Debugging Support: Provides a baseline for analyzing runtime states.
• Documentation Clarity: Explains data structures to non-technical stakeholders.
• Database Alignment: Bridges the gap between design models and schema implementation.

By integrating these diagrams into your workflow, you enhance the precision of your system design. You move beyond theoretical models to practical, verifiable structures. This leads to software that is not only functionally correct but also structurally sound.
